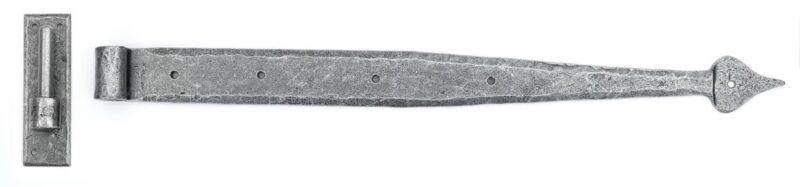

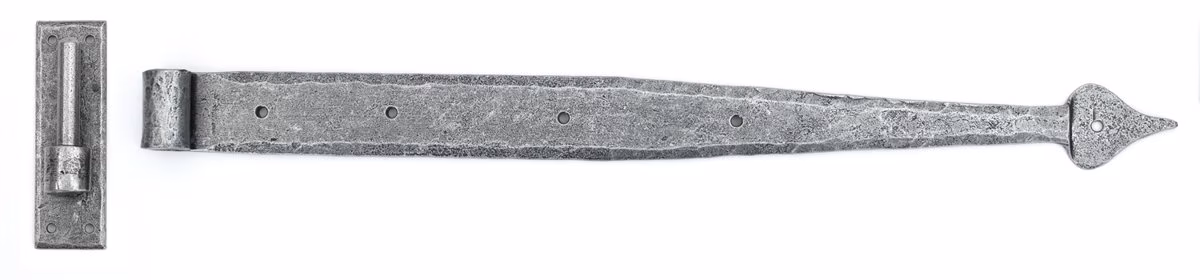

These T Hinges have a ‘Gothic shaped’ pointed end and is a perfect option for hanging heavy doors.
The hook plate needs to morticed into the frame, making the door in-line with the frame. They are hot forged i.e. drawn to shape, not welded or fabricated and with the knuckle being fashioned in the traditional way it makes for a very strong product. The traditional way of choosing a hinge size means it should reach two thirds of the way across the door but providing it reaches at least half way across it should carry the weight of most doors with no problems. For especially heavy doors a third hinge can be used (three on one door). Sold as a set and supplied with necessary fixing screws.
Suitable for internal or external use but maintenance instructions must be followed to preserve the finish of your product.
Finished in Pewter – for more information see the finishes guide here.

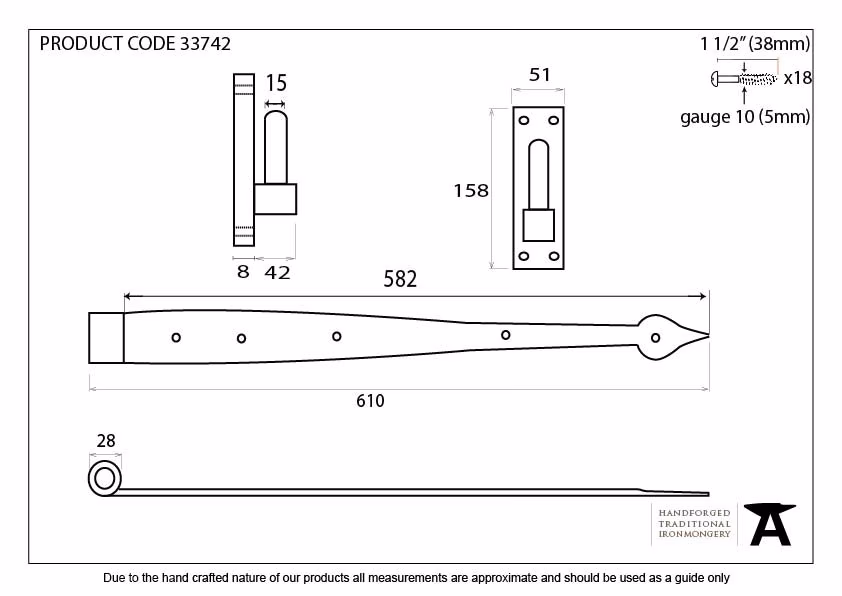

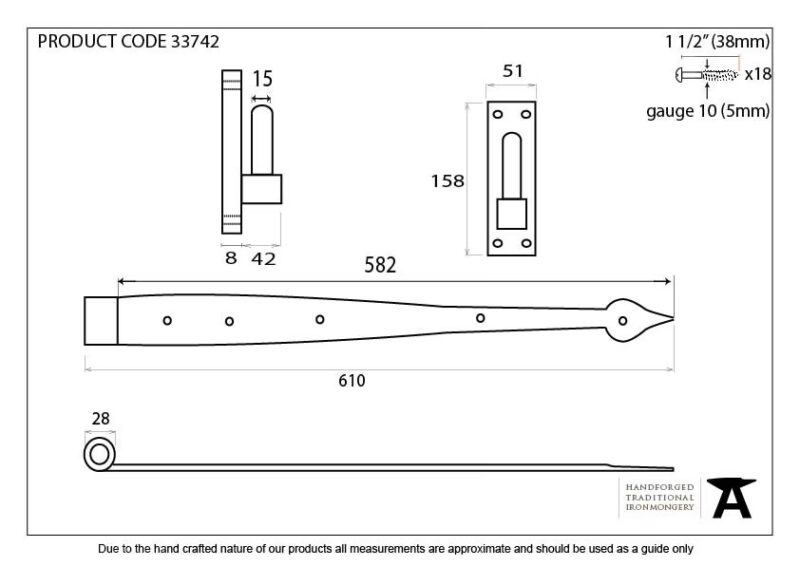

Overall Length: 610mm
Hinge Arm: 582mm
Fixing Plate: 158mm x 51mm
Pin Diameter: 15mm
| Atributos Del Producto | |
|---|---|
| Acabados | Pewter |
| Tamaño | 610mm |
| Información Adicional | Price per Pair |
| Grupo de entrega | 1 |
| Peso | 1500 g |
|---|
