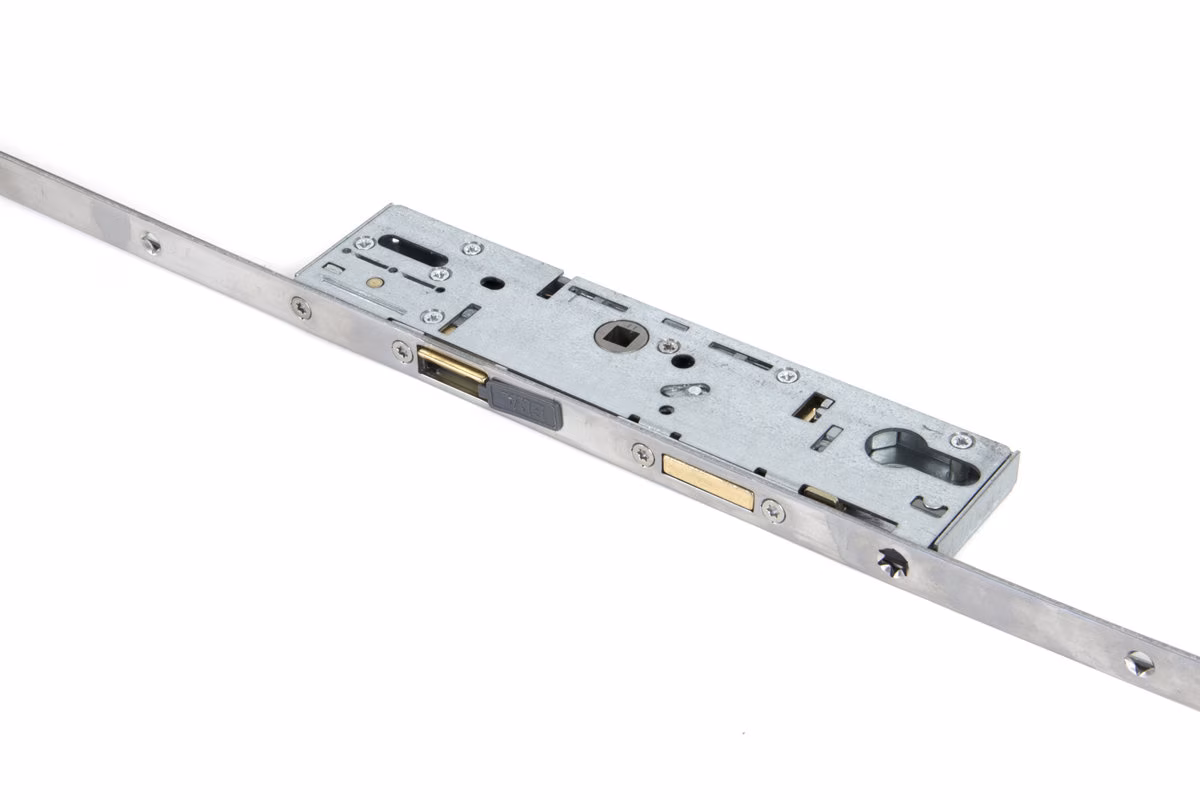

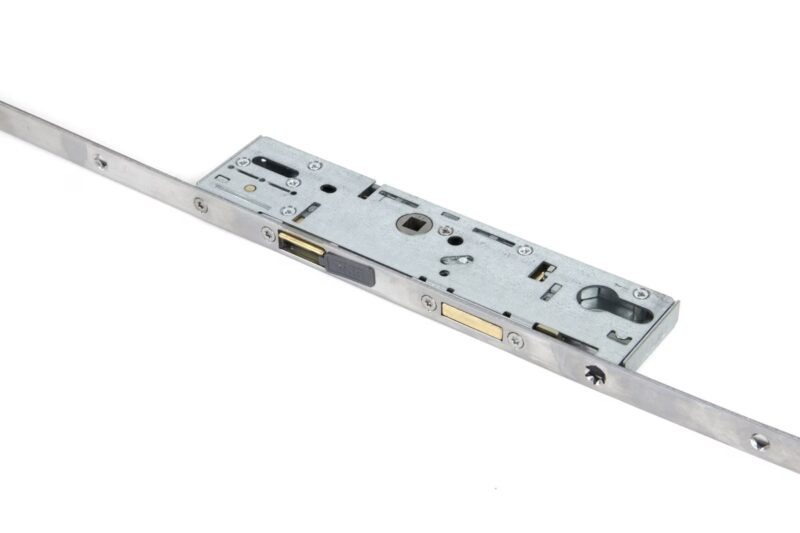

Backset Hook 3 Point Door Lock

For use with our 92mm centre espagnolette locking handle sets.

Order matching keeps separately.

Can be turned into a 5-point lock with shootbolts for 3-point door locks.

Min/max door height (5point): 1970mm/2105mm.

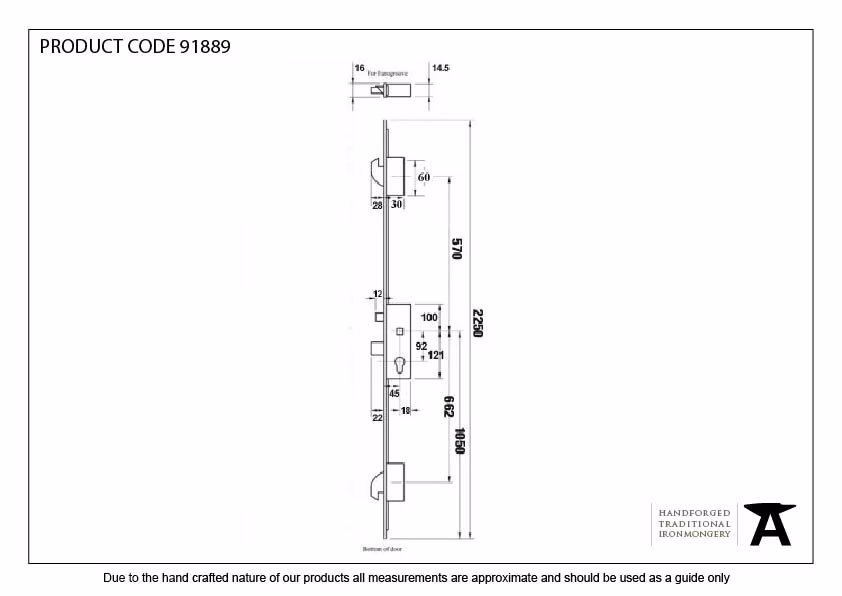

Overall Height: 2250mm
Centre Case Size: 221mm (H) x 14.5mm (T)
Case Depth: 63mm
Backset: 45mm
Linear Lock Box Size: 43mm (D) x 110mm (H) x 14.5mm (T)Min./Max. Door Height: 1500mm – 2250mm
