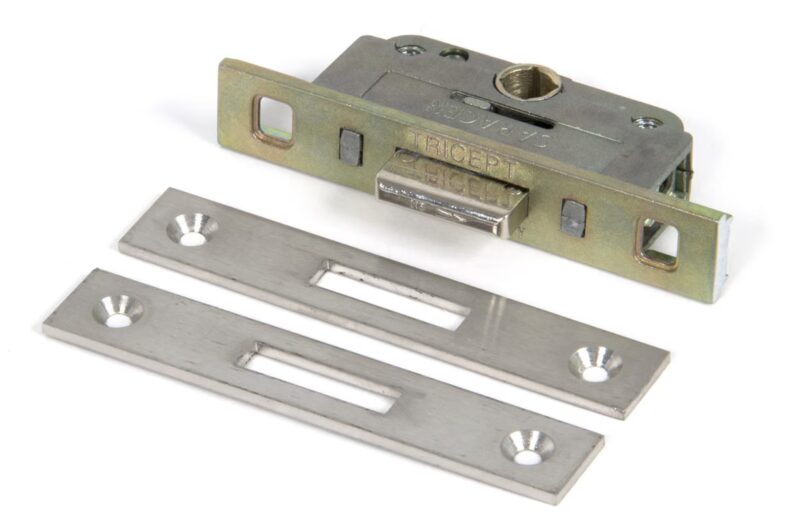

A small, neat window lock with 7mm spindle drive. When morticed into edge of window casement it will take any espag. window fastener.
Comes with mortice plate, face plate and fixings.
The lock needs to be mortised in to the side of the casement.

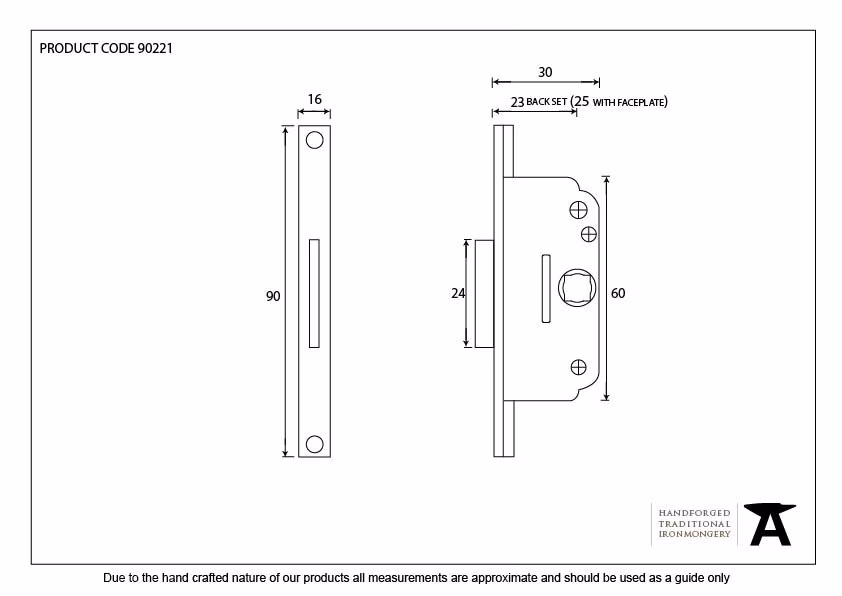

Forend Size:90mm (L) x 16mm ( W)
Case Size: 30mm (D) a 60mm (H) x 12mm (T)
Backset: 23mm (25mm with faceplate)
Keep Plate: 90mm (L) x 16mm (W)
| Atributos Del Producto | |
|---|---|
| Material | Stainless Steel |
| Tamaño | 90mm x 16mm |
| Grupo de entrega | 1 |
| Peso | 450 g |
|---|
